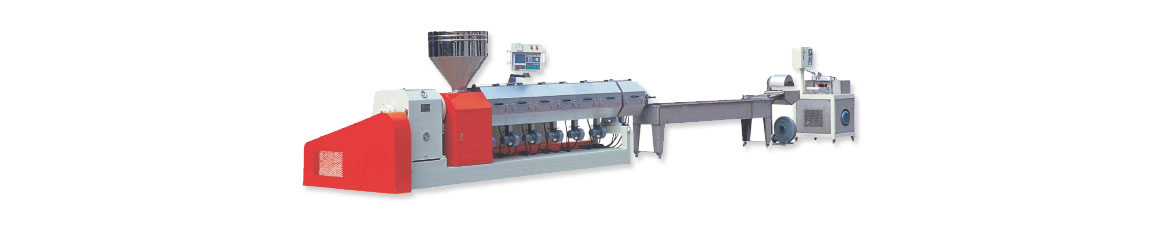

Single Stage Pelletizing Line
Types of Pelletizing Lines
- Direct Under Water Dia Face Cutter Pelletizing Line.
- Two Step Pelletizing Line With Stand Cutter.
Technical Data and Models
| Model | SEW-125/125 | SEW-140/125 | SEW-140/140 | SEW-150/140 |
| Screw Diameter mm | 125 | 140 | 140 | 150 |
| LD Ratio | 18:01 | 18:01 | 25:01 | 25:01 |
| Screw Length mm | 2500 | 2800 | 3600 | 4000 |
| Screw Vent-Type | Single | Single | Double | Double |
| Screw Material | 38Cr MoA/A | 38Cr MoA/A | 38Cr MoA/A | 38Cr MoA/A |
| Motor kw | 37 | 45 | 55 | 90 |
| Heating Load kw | 12 | 18 | 20 | 22 |
| Model | SEW-125/125 | SEW-140/125 | SEW-140/140 | SEW-150/140 |
| Screw Diameter mm | 125 | 140 | 140 | 150 |
| Screw Length mm | 1600 | 1600 | 1800 | 1800 |
| Screw Vent-Type | Single | Single | Double | Double |
| Screw Material | 38Cr MoA/A | 38Cr MoA/A | 38Cr MoA/A | 38Cr MoA/A |
| Motor kw | 15 | 15 | 18 | 22 |
| Heating Load kw | 6 | 6 | 10 | 10 |
| Cutter Drive kw | 2.3 | 3 | 5 | 5 |
