Products

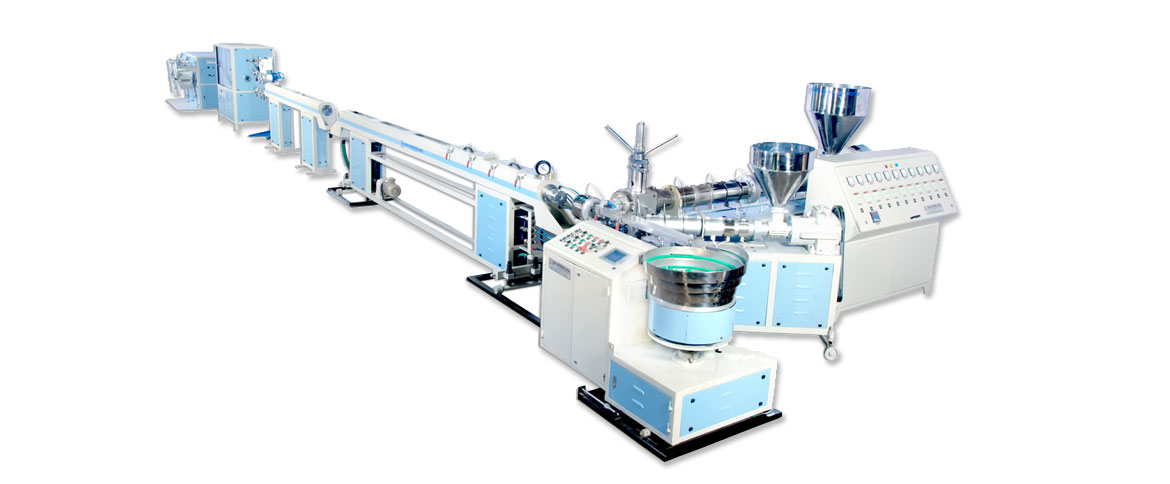

Inline & Online Drip Line
Suresh Engineering Works with it's continue research and development is first to develop indigenous Inline drip line machine in India. Drip irrigation is an efficient method of applying water and nutrition to crop. Inline drip line irrigation is most effective in fruits, vegetables and flowers.
Benefits of Drip Irrigation
- Reduction in water consumption.
- Constant flow of water to root level.
- Low operating cost.
- Low probability of weeds & disease.
Standard Line Equipments
- Extruder with control panel.
- Inserting Device.
- Crosshead.
- Perforating Device.
- Semi-automatic Coiling Machine.
- Haul-off.
- Vacuum calibrating tank with cooling tank.
Technical Data and Models
| Model | SEW 50 IDM | SEW 65 IDM |
|---|---|---|
| Screw Dia | 50 mm | 65 mm |
| LD Ratio | 30:1 | 30:1 |
| Main Drive | 18.75 KW | 22.50 KW |
| Gear Box | Helical | Helical |
| Output | Max. 60 kg/hour | Max. 120 kg/hour |
| Pipe Diameter in mm | Min 12mm / Max 20 mm | Min 12mm / Max 20 mm |
| Wall tdickness in mm | Min 0.80mm / Max 1.30 mm | Min 0.80mm / Max 1.30 mm |
| Raw material | LLDPE,LDPE, HDPE | LLDPE,LDPE, HDPE |
| Line Speed Max. | 30m/min | Max. 60m/min |
| Dripper Inserting | Upto 90 dispenser/min | Upto 180 dispenser/min |
| Perforating | By Electric Motor | By Electric Motor |
| Connected Load | 38 KW | 48 KW |
| Air pressure | 8 Kg/cm2 | 14 Kg/cm2 |
| Space requirement | L16 /W4.5 / H4.5 mtr | L22 / W4.5/ H4.5 mtr |
We offer extensive range of optional attachment & equipments to fulfill your Inline Drip Machine.
Range of optional attachment & equipments
- Dryer.
- Co-extrusion system.
- Printer.
- Flow test machine.
